Mining Equipment from 1910-1920





















Mining Equipment from 1910-1920

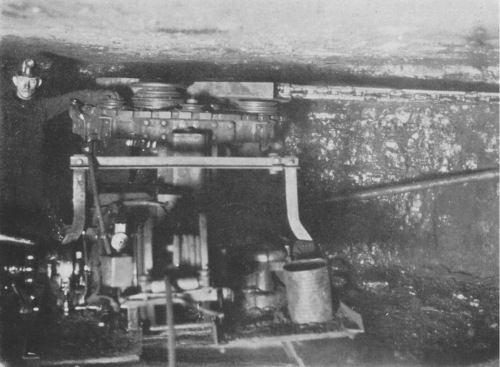

Mining machine in operation

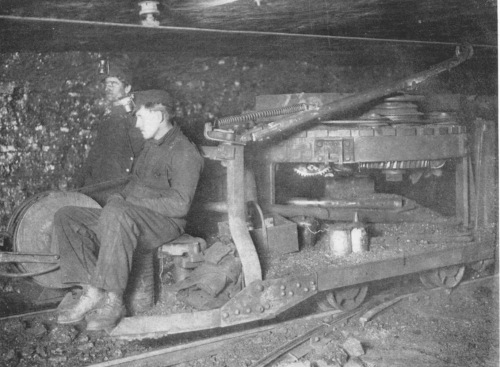

Mining machine traveling under its own power to cut coal in another heading

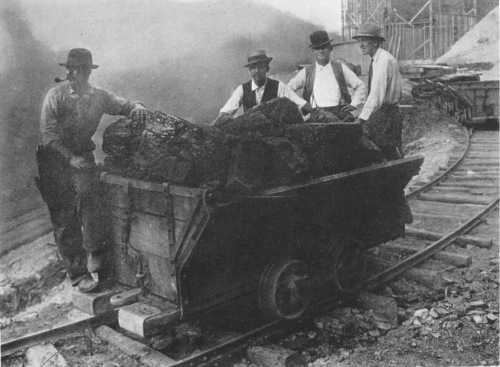

First mine car of coal, loaded August 30, 1913.

elkhorn5.jpg (56660 bytes)Mules hauling mine cars of coal-- eventually the coal will be hauled by electric power.

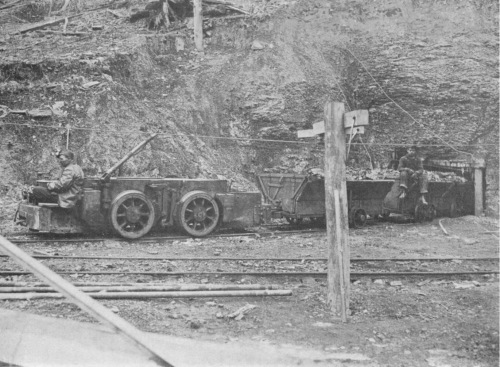

elkhorn7.jpg (81037 bytes)Mine motor bringing out a trip of loaded cars

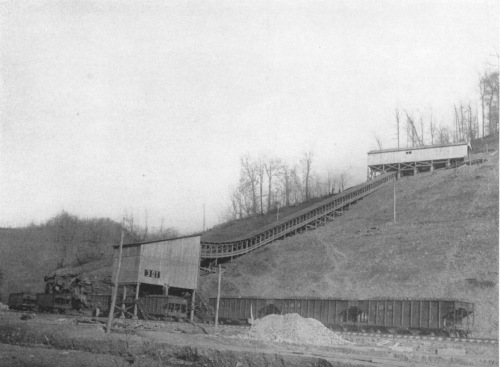

elkhorn9.jpg (47595 bytes)Tipple-- Mine No. 301.  First loaded in railroad cars, August 30, 1913

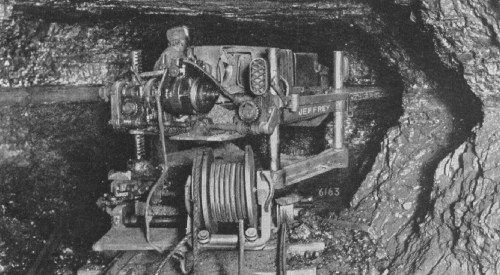

jd1.jpg (52058 bytes)The Type of Machine illustrated is known as the "JD" Type and is a modification of Jeffrey's 28-A SHORTWALL Coal Cutter mounted on a locomotive turret truck.

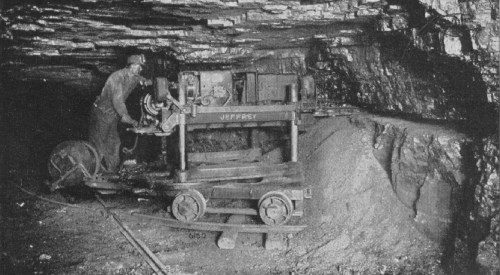

jd2.jpg (47553 bytes)Dirt seams can be cut and gobbled, leaving a clean, marketable coal.  Less powder is required for shooting down; the coal is not shattered.  Less danger from blown out shots.  Protects tender roof.
